Patent number锛歓L 200820026304.5
| Model | Net weight |
Power supply (DC) |
Motor (watts) | No load absorption |
Max. Load |
Max. Pull |
Line speed |
Rope size |
Chain size (mm) |
| 51016/51017 | 35kg | 220V or 400V | 2000W | 30A | 1500-2500kg | 700-1200kg | 50m/min | 18mm | 10mm |

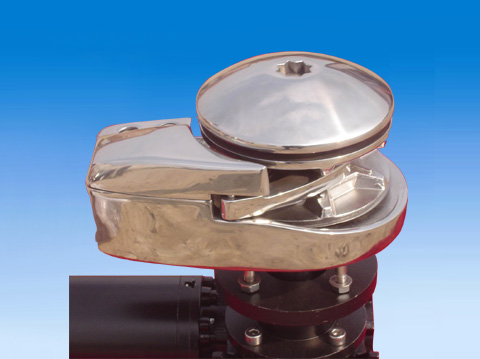

鈼 design suits powerboats or sailboats and can be utilized for anchor ropes, as docking capstans on larger craft, or auxiliary line hauling.
鈼 High-quality polished 316 stainless steel surface makes for a beautiful appearance
鈼 installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs
鈼 Per windlass have the solenoid,hand-switch and foot-switch.
鈼 Also can supply the remote control to our windlass
