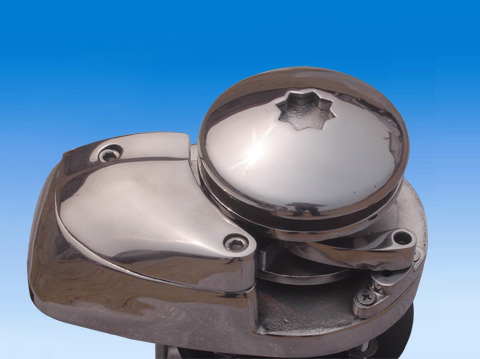

Chain-rope Gyspy Only or Chain-rope Gyspy-drum.

Heavy duty working load motor; Easy to install by manual; High-quality polished.

Specification: YD811/YD811H----1600W

Model      Motor         Volt         Max.Pull         Working load       Speed     Rated (A)        Rope        Chain        Boat

51008   1600W   12V / 24V    1600kg           500kg              20m/min      140A      12-14mm     8-10mm     22-26m

51009   1600W   12V / 24V    1600kg           550kg              20m/min      140A      12-14mm     8-10mm     22-26m

Features:

1.Polished stainless steel 316 finish

2.Rope-chain Gyspy only(YD811) or Rope-chain Gyspy-Drum(YD811H).

3.With a fully sealed,permanent magnent,Heavy-deauty motor.

4.All can be used with 6mm chain spliced to 8mm double braid or 10mm three strand rope.

5.The low Profile version and a capstan drum version are available.

6.Simple two piece installation is convenient for boaters.

7.Accesories:handle,solenoid,hand-switch,foot-switch,remote control,circuit breaker.

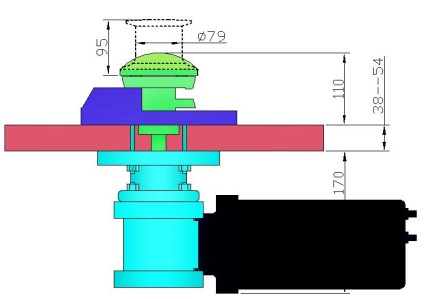

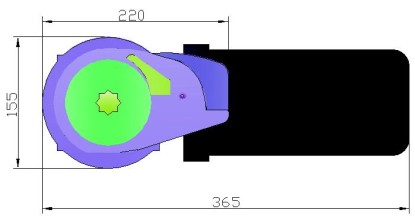

Dimensions:
