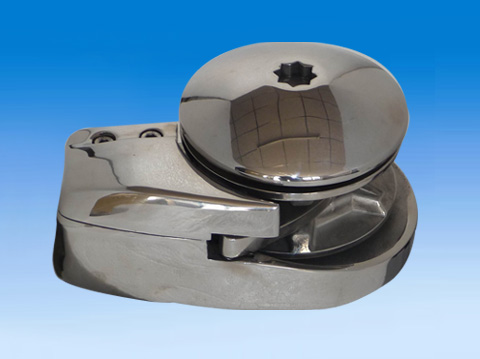

Chain-rope Gyspy Only or Chain-rope Gyspy-drum.

Heavy duty working load motor; Easy to install by manual; High-quality polished.

Specification: YD611/YD611H----800W

Model         Motor        Volt        Max.Pull          Working load       Speed     Rated (A)        Rope        Chain        Boat

51004       800W   12V / 24V    720kg             250kg               20m/min      100A      10-12mm     8-10mm     14-19m

51005     800W   12V / 24V    790kg             280kg               20m/min      100A      10-12mm     8-10mm     14-19m

Features:

1.Polished stainless steel 316 finish

2.Rope-chain Gyspy only(YD611) or Rope-chain Gyspy-Drum(YD611H).

3.With a fully sealed,permanent magnent,Heavy-deauty motor.

4.All can be used with 6mm chain spliced to 8mm double braid or 10mm three strand rope.

5.The low Profile version and a capstan drum version are available.

6.Simple two piece installation is convenient for boaters.

7.Accesories:handle,solenoid,hand-switch,foot-switch,remote control,circuit breaker.

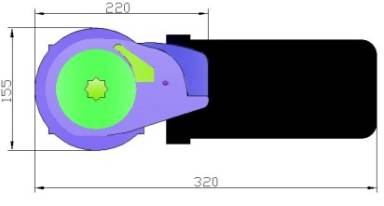

Dimensions:
