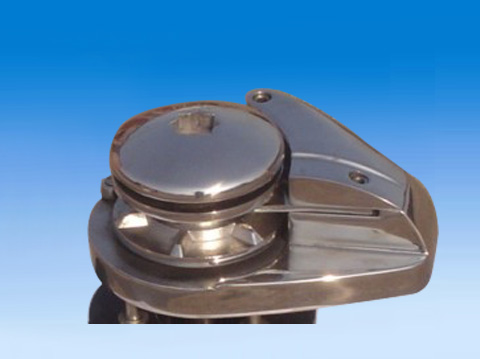

Chain-rope Gyspy Only or Chain-rope Gyspy-drum.

Heavy duty working load motor; Easy to install by manual; High-quality polished.

Specification: YD511/YD511H----600W

Model         Motor        Volt        Max.Pull          Working load       Speed     Rated (A)      Rope      Chain      Boat

51002       600W   12V / 24V    560kg             180kg                 25m/min      60A      8-10mm     6-7mm     8-16m

51003     600W   12V / 24V    600kg             210kg                 25m/min      60A      8-10mm     6-7mm     8-16m

Features:

1.Polished stainless steel 316 finish

2.Rope-chain Gyspy only(YD511) or Rope-chain Gyspy-Drum(YD511H).

3.With a fully sealed,permanent magnent,Heavy-deauty motor.

4.All can be used with 6mm chain spliced to 8mm double braid or 10mm three strand rope.

5.The low Profile version and a capstan drum version are available.

6.Simple two piece installation is convenient for boaters.

7.Accesories:handle,solenoid,hand-switch,foot-switch,remote control,circuit breaker.

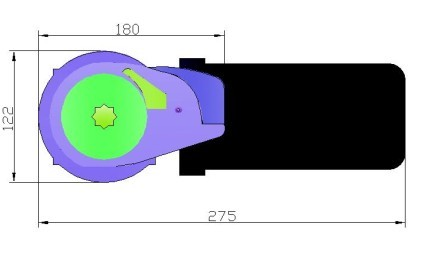

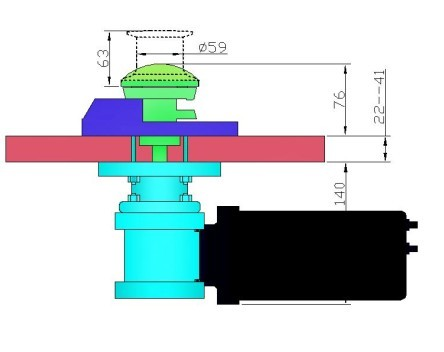

Dimensions:
